In the realm of electrical engineering and power systems, potential transformers (PTs) are essential components used to measure and monitor voltage levels in a system safely. As with any critical component, ensuring that potential transformers are functioning correctly is vital to maintaining efficiency and safety in electrical systems. This article delves into the significant aspects of potential transformer testing, enhancing the understanding of its importance, methods, and best practices, thereby offering valuable insights for engineers and technicians committed to excellence in power system management.

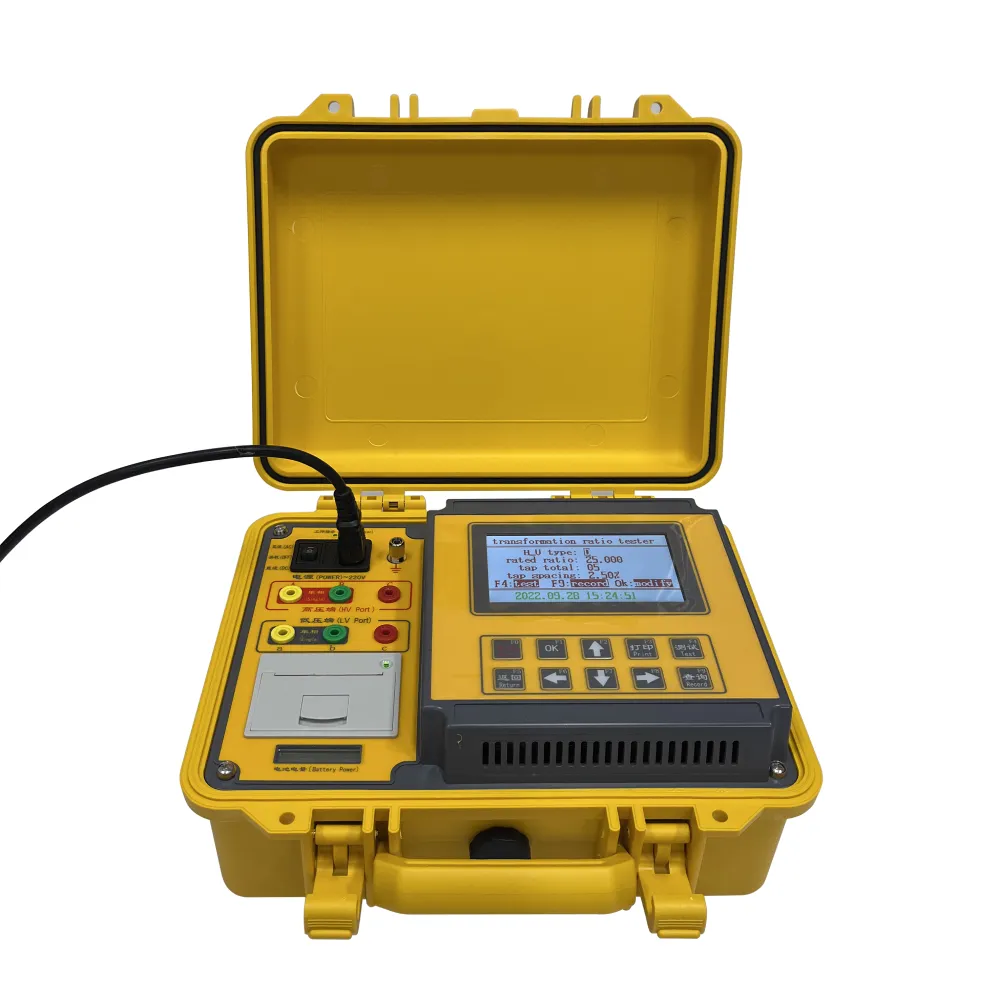

Potential transformers are primarily used in electrical systems to reduce high voltage values to a safer level for metering and relay protection purposes. The credibility of a PT is fundamental as it influences the accuracy and reliability of the measurements and data gathered from the system. Thus, comprehensive testing of potential transformers is non-negotiable for any organization aiming to uphold safety standards and operational efficiency. Experience reveals that successful potential transformer testing hinges not only on the technical understanding but also on the practical application of various tests. One of the most commonly conducted tests is the ratio test, which evaluates whether the PT accurately steps down the voltage as per its specified ratio. This test is critical because any deviation might lead to incorrect readings, affecting everything from billing to system protection.

Moreover, dielectric tests, which include applications of specific voltages above the operating level, check the insulation strength of the PT. Expertise in conducting these tests ensures that the transformer can withstand operational voltages and unexpected spikes without breakdown. From my professional standpoint, ensuring that potential transformers pass the dielectric test effectively is a testament to their ability to perform under stress, an assurance of their reliability in critical operations. Another test crucial to the integrity of potential transformers is the polarity test. Confirming the correct polarity is fundamental as incorrect connections can cause severe inaccuracies in voltage readings and, subsequently, lead to erroneous system operations. Polarity testing, performed meticulously, guarantees that the PT's connections correspond correctly with the intended design.potential transformer testing pdf
Authoritative sources in the electrical engineering domain emphasize the necessity of these tests not as a mere formality but as part of a robust maintenance regime. Technical guidelines from leading manufacturers and engineering bodies provide frameworks that ensure all testing procedures yield credible data, reinforcing the mechanical and operational integrity of potential transformers. Trust in the testing processes is bolstered through adherence to established standards such as the IEEE and IEC standards, which outline specific procedures for potential transformer testing. Following these standards is not only a mark of professionalism but also provides a framework within which engineers can ensure testing processes are conducted with the highest degree of accuracy and safety. In today's rapidly advancing technological landscape, integrating digital and automated systems can significantly enhance testing efficiency and accuracy. Automated testing tools can quickly collect data and perform complex calculations, minimizing human error, and providing dependable outputs for decision-making. Embracing such technologies stands at the forefront of modernizing potential transformer testing. In conclusion, potential transformer testing is a cornerstone activity for ensuring the reliability and safety of electrical systems. Through a blend of experience and expertise, and backed by authoritative standards, this testing fosters trust in the electrical systems we depend on. For professionals and organizations involved in power systems, adopting rigorous testing protocols not only minimizes risk but also positions them as leaders in delivering safe and reliable electrical solutions. This commitment to excellence in potential transformer testing embodies a dedication to safety, precision, and the advancement of engineering practices in the modern era.
