Transformer Oil Breakdown Voltage Testing Procedure

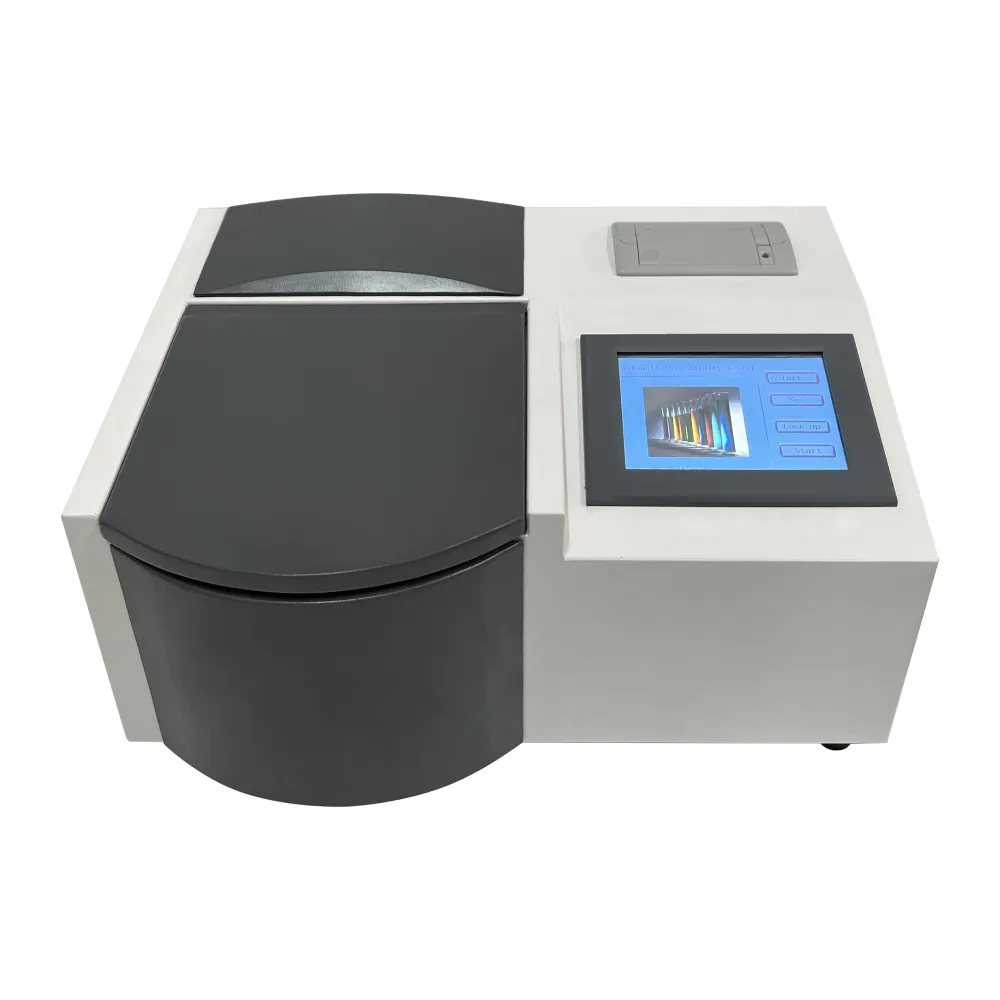

Understanding the Breakdown Voltage Test of Transformer Oil The breakdown voltage test is a crucial diagnostic tool in the maintenance and quality assurance of transformer oils. This non-destructive test provides insight into the dielectric strength of the oil, which is essential for the reliable operation of power transformers. Dielectric strength refers to the ability of the oil to resist electrical breakdown under high voltage stresses. A high breakdown voltage indicates that the oil can effectively separate conductors at different potentials without allowing arcing or flashover. During the test, a standard electrode arrangement is immersed in the oil sample, and a gradually increasing voltage is applied across the electrodes. The voltage ramp continues until a point is reached where the electric stress overcomes the oil's resistance, causing it to break down and allow current to flow. The voltage at this moment is referred to as the breakdown voltage and is recorded in kilovolts (kV). Several factors can influence the results of the breakdown voltage test. These include the moisture content, particulate contamination, chemical composition, and temperature of the oil. Moisture and contaminants are particularly insidious because they can significantly reduce the dielectric strength of the oil. For this reason, before conducting the test, it is imperative to ensure that the oil sample is representative and free from such impurities For this reason, before conducting the test, it is imperative to ensure that the oil sample is representative and free from such impurities For this reason, before conducting the test, it is imperative to ensure that the oil sample is representative and free from such impurities For this reason, before conducting the test, it is imperative to ensure that the oil sample is representative and free from such impuritiesbreakdown voltage test of transformer oil. The importance of this test cannot be overstated. A transformer operating with oil that has low dielectric strength may experience reduced efficiency and increased risk of failure. In severe cases, it could lead to catastrophic equipment damage and even pose safety hazards. Therefore, regular testing of breakdown voltage is an integral part of preventative maintenance schedules for transformers. Maintaining optimal breakdown voltage levels ensures that the insulating properties of the oil are preserved, preventing internal arcing and subsequent equipment damage. It also helps in predicting the remaining useful life of the oil and guides decisions on when it needs to be replaced or regenerated. In conclusion, the breakdown voltage test is a fundamental assessment of transformer oil quality. It provides valuable information about the oil's ability to perform its insulating function under stress. By monitoring the dielectric strength of transformer oils, utilities can protect critical assets, extend their service life, and maintain the reliability of power supply systems.
