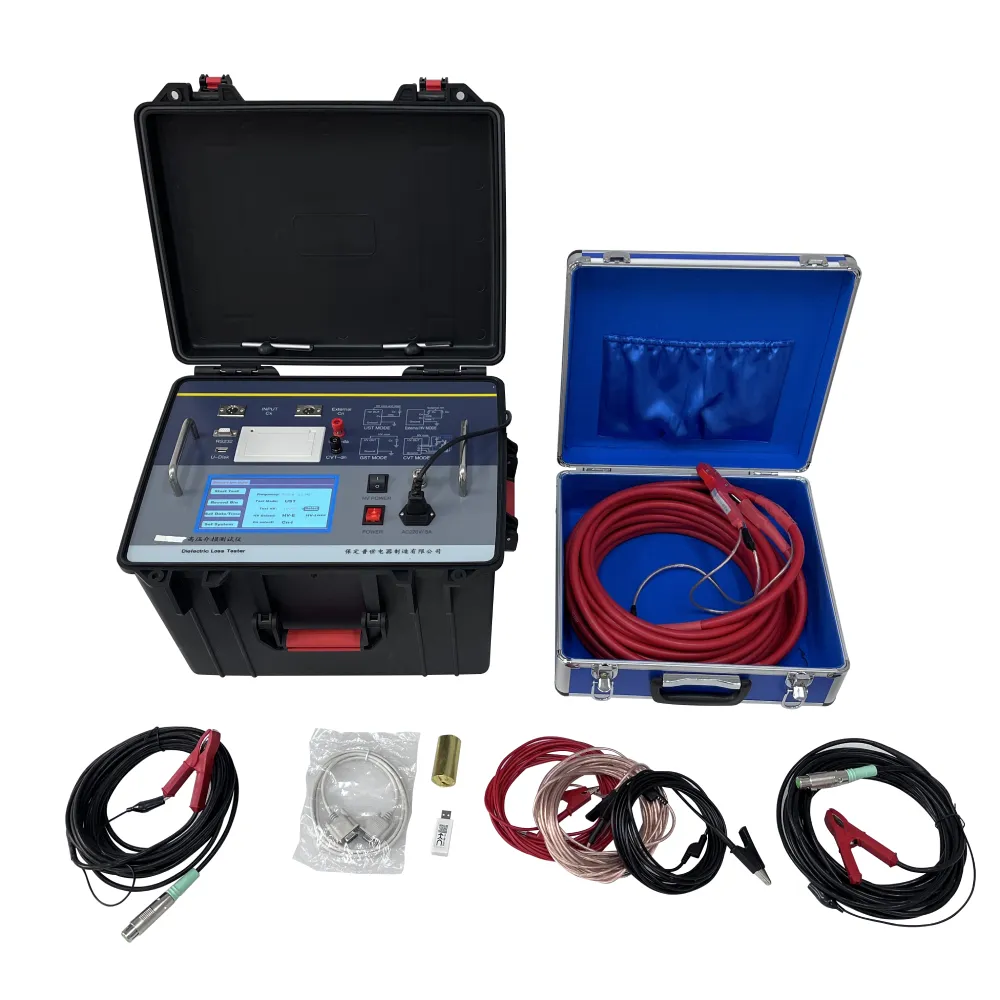

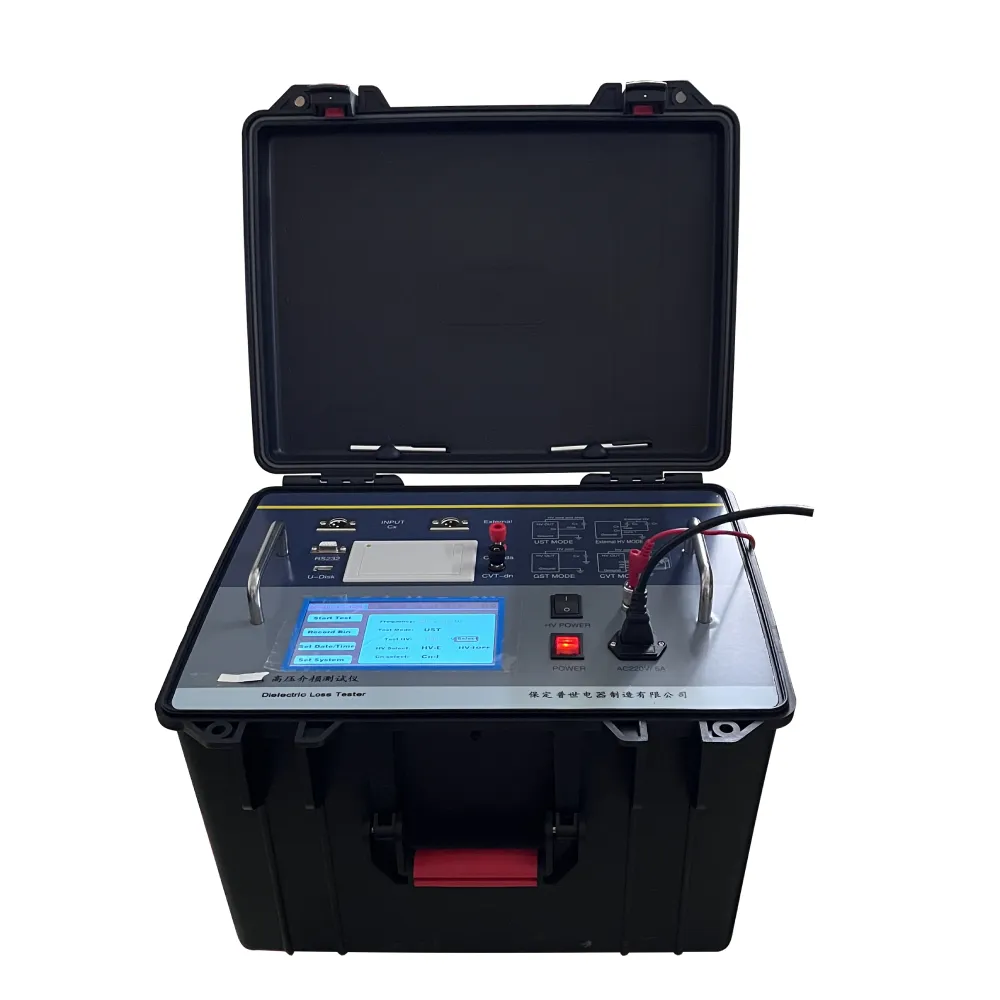

PS-JSB01 Transformer Dielectric Loss Analysis Tan Delta Tester

The dielectric loss tester adopts variable frequency power supply technology, single chip microcomputer and modern technology for automatic frequency conversion, analog-to-digital conversion and data operation; It has strong anti-interference ability, fast test speed, high precision, automatic digitization and simple operation; The power supply adopts high-power switching power supply, which can provide a maximum voltage of 10kV; It can automatically filter out 50Hz interference and is suitable for on-site test with large electromagnetic interference such as substation. It is widely used for dielectric loss measurement of transformers, mutual inductors, bushings, capacitors, arresters and other equipment in power industry.

CONTACT NOW DOWN LOAD TO PDF

Details

Tags

Product Selling Point Introduction

Core Description
The dielectric loss tester adopts variable frequency power supply technology, single chip microcomputer and modern technology for automatic frequency conversion, analog-to-digital conversion and data operation; It has strong anti-interference ability, fast test speed, high precision, automatic digitization and simple operation; The power supply adopts high-power switching power supply, which can provide a maximum voltage of 10kV; It can automatically filter out 50Hz interference and is suitable for on-site test with large electromagnetic interference such as substation. It is widely used for dielectric loss measurement of transformers, mutual inductors, bushings, capacitors, arresters and other equipment in power industry.
Introduction
1. The instrument adopts Fourier transform digital filtering technology to measure capacitance, dielectric loss and other parameters. The test results have high precision and are easy to realize automatic measurement.
2. The instrument adopts frequency conversion technology to eliminate 50Hz power frequency interference on site, and can measure reliable data even in the environment of strong electromagnetic interference.
3. Data storage: it is internally equipped with calendar chip and large capacity memory, which can save the test results at any time, view the historical records at any time, and print out.
4. Instrument data can be exported through USB flash disk.
5. Integrated model with standard capacitor and high voltage power supply, which is convenient for field test and reduces field wiring.
6. It has the function of reverse wiring low-voltage shielding. Under the condition of 220kV CVT bus grounding, the dielectric loss of C11 can be measured without disconnecting 10kV reverse wiring.
7. It can identify the frequency of external high-voltage power supply from 40Hz to 70Hz, and it is allowed to use power frequency power supply or series resonant power supply for large capacity and high-voltage dielectric loss test.
8. With CVT test function, it can realize CVT self excitation test, and can set four protection limits of high voltage / current and low voltage / current to ensure personal and equipment safety.
9. When testing CVT, it can not only automatically test the capacitance and dielectric loss of C1 and C2, but also test the total capacitance and dielectric loss of CVT equipment.
10. With a thermal printer.
11. With computer interface. One computer can control 32 instruments, which can be integrated into the comprehensive high voltage test vehicle to realize measurement, data processing and report output.
12. Grounding protection function, electric shock protection function.

Product Parameter

Accuracy	Cx	± (reading) × 1%+1pF）
	tg δ	± (reading) × 1%+0.00040）
Anti interference index	frequency conversion anti-interference, which can still achieve the above accuracy under 200% interference
Capacitance range	Internally applied high pressure	3pF～60000pF/10kV 60pF～1 μ F/0.5kV
	Externally applied high voltage	3pF～1.5 μ F/10kV 60pF～30 μ F/0.5kV
	resolving power	Up to 0.001pf, 4 significant digits
tg δ Range	Unlimited, resolution 0.001%, automatic identification of capacitance, inductance and resistance.
Test current range	10 μ A～5A
Internally applied high pressure	Set voltage range	0.5 ~ 10KV
	Maximum output current	200mA
	Voltage rise and fall mode	the voltage is set at will. For example, 5123v.
	Test frequency	40-70HZ, single frequency set at will. For example, 48.7hz
		Automatic double frequency conversion from 50 ± 0.1Hz to 50 ± 10Hz can be set at will.
		Automatic double frequency conversion from 60 ± 0.1Hz to 60 ± 10Hz can be set at will.
	Frequency accurac	±0.01Hz
Externally applied high voltage	The maximum test current during positive connection is 5a, power frequency or frequency conversion is 40-70HZ
	The maximum test current during reverse wiring is 10kV / 5A, power frequency or frequency conversion is 40-70HZ
CVT self excitation low voltage output	output voltage 3 ~ 50V, output current 3 ~ 30A
Measurement time	About 40s, related to the measurement method
Input power supply	180V ~ 270vac, 50Hz ± 1%, mains power or generator power supply
Computer interface	standard RS232 interface, USB flash disk socket (automatic USB flash disk data storage).
Printer	micro thermal printer
ambient temperature	– 10 ℃ ~ 50 ℃
relative humidity	< 90%
Overall dimension	460 × 360× 350mm
instrument weight	28KG
