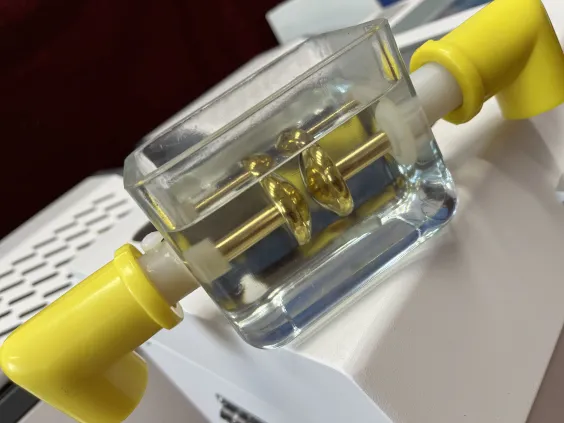

- 1,Integrated oil cup: The one-piece design ensures a stable structure of the oil cup and improves the stability and accuracy of the test.
2,Excellent sealing performance: The oil cup has good sealing performance, effectively preventing oil leakage and ensuring a safe and reliable testing process.
3,A variety of electrode heads are available: equipped with four different types of electrode heads to meet different testing needs and provide more flexible choices.

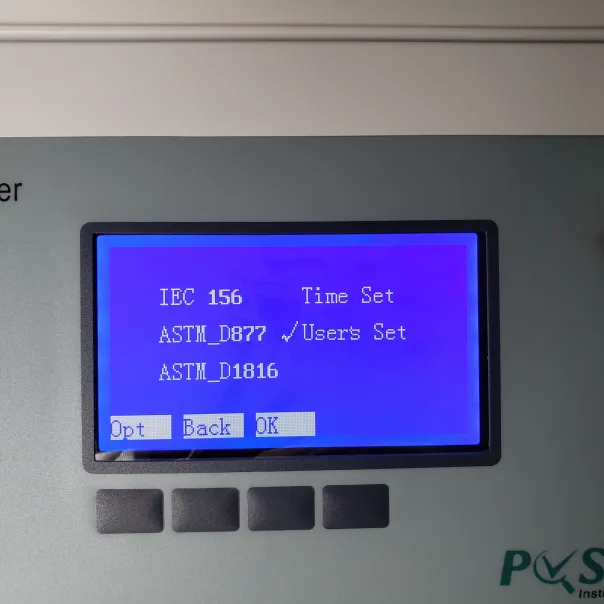

4,Comply with standards: The product fully complies with the American Society for Testing and Materials (ASTM) standards ASTM D1816 and ASTM D877, ensuring the accuracy and reliability of test results.

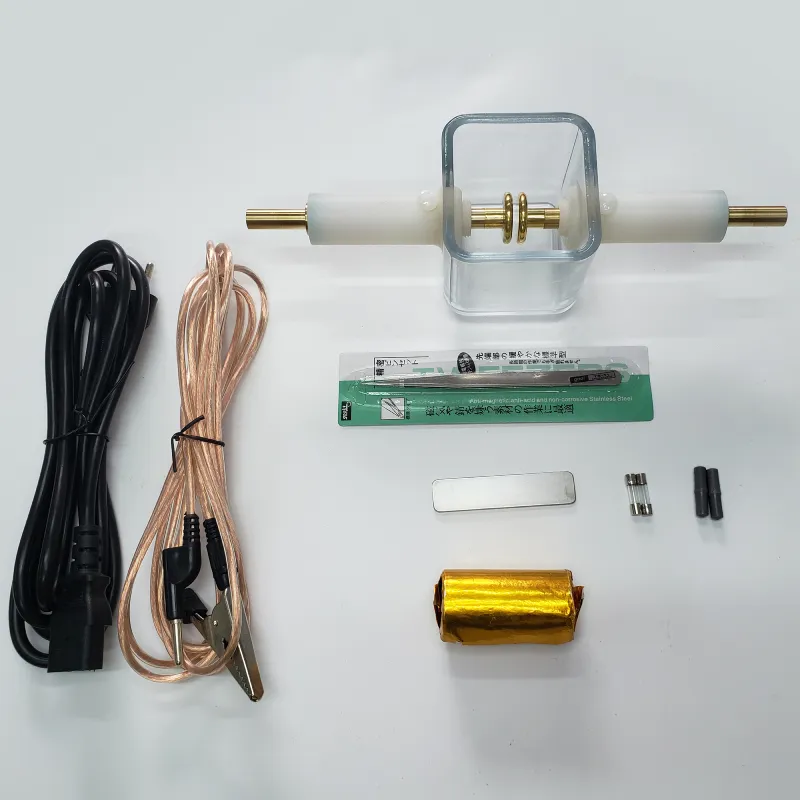

5,Complete accessories: The product is equipped with elbows and various pressure-resistant accessories to meet the needs of different testing environments and provide a more comprehensive testing solution.
The Oil BDV (Breakdown Voltage) Tester is a device designed for measuring the breakdown voltage of insulation oil. It finds applications in various industries such as the electrical power industry, petroleum industry, and laboratories.
- Electrical Power Industry: Used for testing insulation oil in transformers, cables, and switchgear equipment.
- Petroleum Industry: Employed for testing insulation oil in oil-immersed equipment like transformers, cables, and motors.
- Laboratories: Utilized for research, teaching, and quality testing purposes to evaluate the performance of insulation oil.
- Transformer Maintenance: Used to assess the insulation performance of transformer oil during maintenance to detect any existing issues promptly.
- New Equipment Acceptance: Employed for testing and accepting newly manufactured equipment in power equipment factories to ensure quality.
- In-Service Monitoring of Oil-Immersed Equipment: Regular testing of insulation oil during equipment operation to ensure normal operation and safety.
- Laboratory Research: Utilized by research institutions and laboratories to study and evaluate the performance of insulation oil for enhancing the insulation performance and safety of oil-immersed equipment.
The primary function of the Oil BDV Tester is to measure the breakdown voltage of insulation oil. This parameter indicates the voltage at which insulation oil breaks down under specific conditions and electric field strength. The test helps assess the insulation performance of the oil, ensuring compliance with standard requirements and ensuring the safe operation and stability of electrical equipment.
Sell insulating oil dielectric strength tester easy to wear product accessories,
one-piece special plexiglass oil cup.

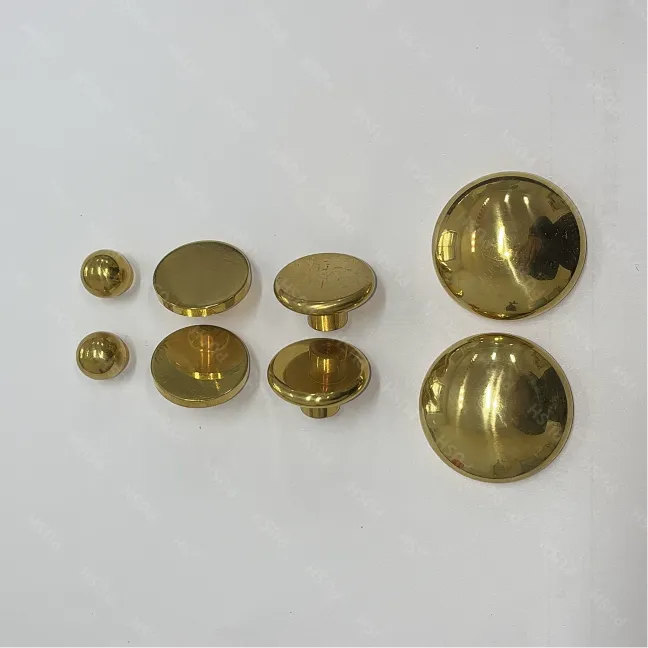

Four kinds of electrode heads, two kinds of flat electrodes, spherical electrodes, hemispherical electrodes,
in line with astm d1816 and astm d877, etc.
-
