Product Selling Point Introduction

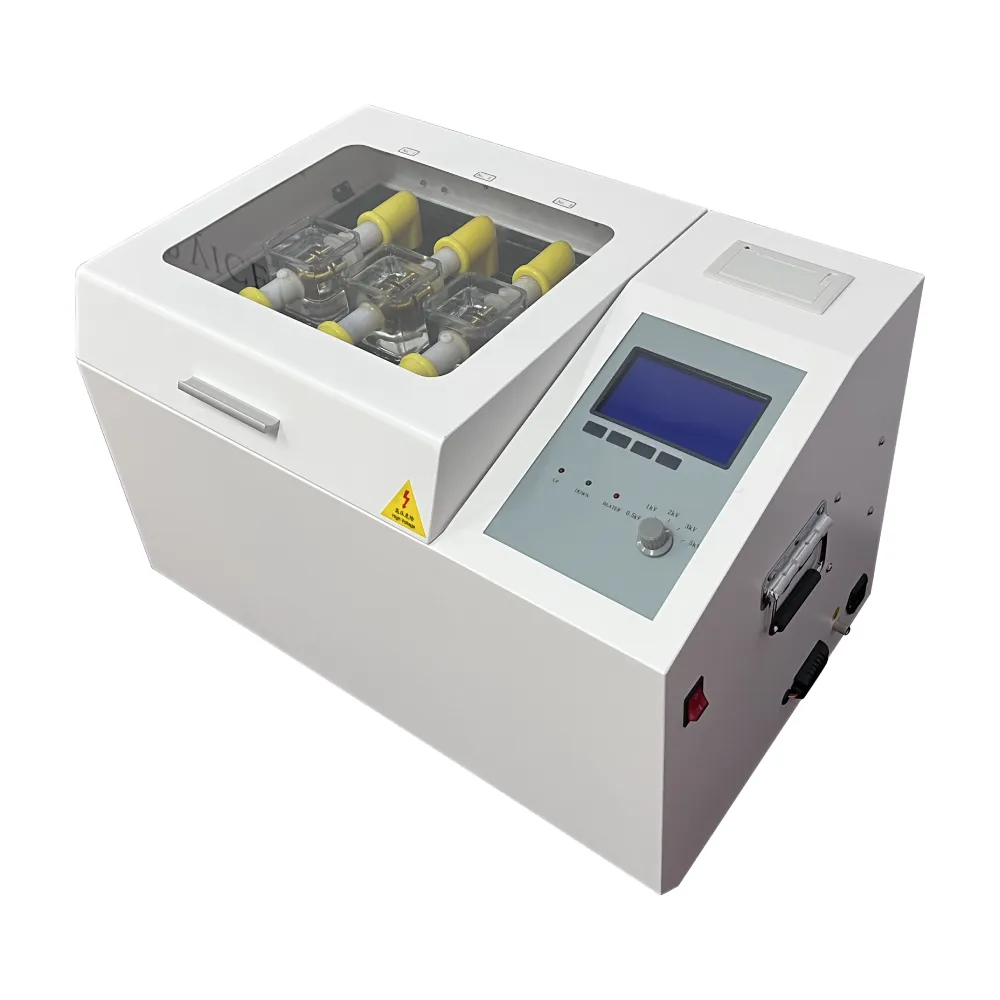

- 1.The instrument is designed for three cups.
2.5.4 inch LCD display, Chinese menu man-machine dialogue is convenient, with temperature, humidity measurement and clock display function.
3.The operation is simple, and it automatically completes the operation of lifting, holding, stirring, static setting, calculation, data storage and printing and output.
4.It has the function of power loss and storage, and the test results can be saved automatically.
5.It has the function of overvoltage, over current, limit and grounding alarm to ensure the personal safety of the operator.
6.The unique waveform setting function eliminates the interference of the harmonic to the accurate measurement.
7.Controlled by dual CPU and PLC security instrument is stable and reliable.
8.Has 232 interface and Bluetooth function, convenient data transmission and computer.
Product Parameters
|
Name |
Indicators |
|
Output voltage: |
0～80 kV（0-100KV can be set） |
|
THDu |
＜1% |
|
Pressure rate |
2.0~3.5 kV/s(Δ = 0.5 kV/s) |
|
Booster capacity |
1.5 kVA |
|
Measurement accuracy |
±2% |
|
Supply voltage |
AC 220 V ±10% |
|
Power frequency |
50 Hz ±2% |
|
Power |
200 w |
|
Applicable temperature |
0～45℃ |
|
Applicable humidity |
＜85 % RH |
|
Width * height * depth |
410×390×375 (mm) |
|
Net weigh |
~ 32 kg |
