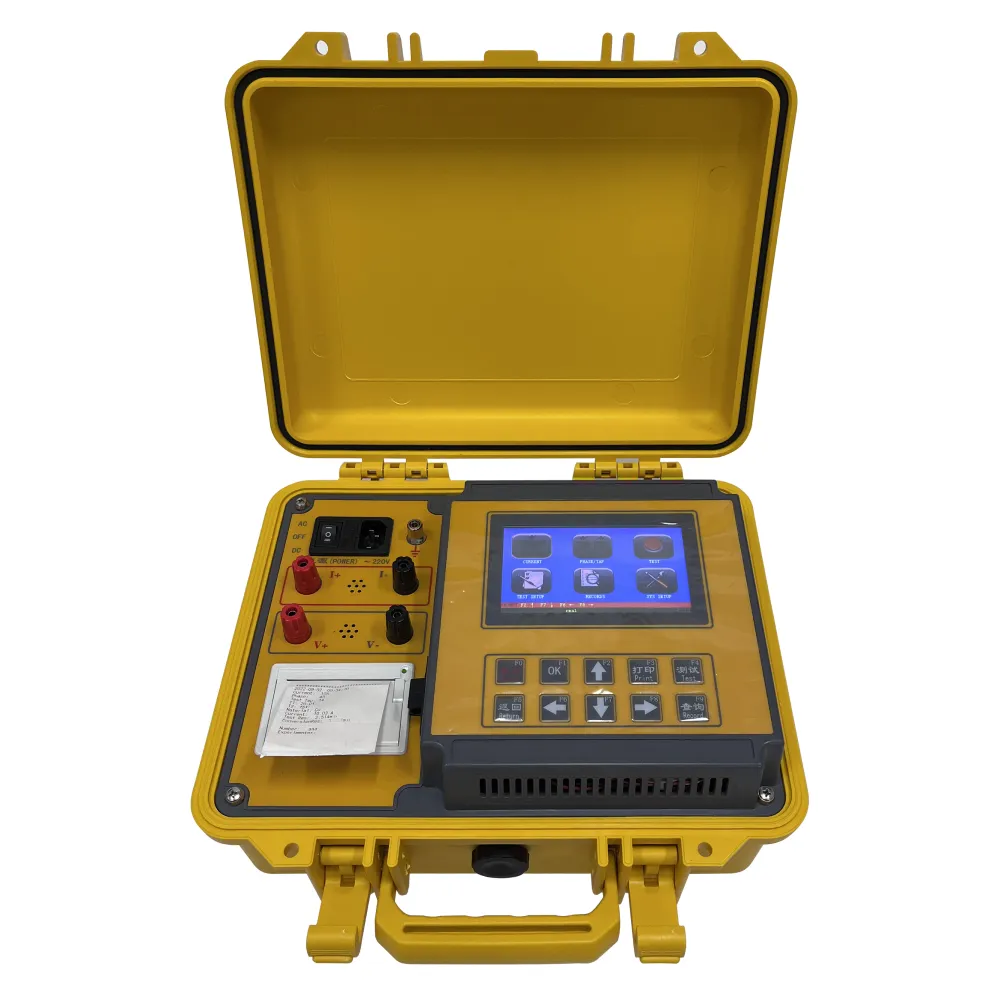

PS-DCA10 DC resistance tester

The instrument adopts new power supply technology and has the characteristics of small volume, light weight, large output current, good repeatability, strong anti-interference ability and perfect protection function.

CONTACT NOW DOWN LOAD TO PDF

Details

Tags

Product Selling Point Introduction

1.The whole machine is controlled by high-speed single chip microcomputer, with high degree of automation and simple operation.
2.The new power supply technology is adopted, with many current gears and wide measurement range. The test current can be automatically selected according to the load.
3.480 * 270 true color LCD touch screen, clear display under strong light, dual-purpose touch screen / key.
4.RS232 and USB interface, can communicate with computer (optional) and U disk storage.
5.The protection function is perfect, which can reliably protect the impact of back EMF on the instrument, and the performance is more reliable.
6.With discharge audible alarm and screen prompt, the discharge indication is clear to reduce misoperation.
7.The response speed is fast, the measurement data is stable, and the data is refreshed automatically during the test process.
8.Intelligent power management technology can effectively reduce the internal heating of the instrument and save energy.
9.Non power down clock and non power down memory can permanently save data.

Product Parameter

Output current	automatic、10A、 5A、1A、200mA、40mA、<5mA
Resolving power	0.1μΩ
Range (including line)	100Ω～100kΩ (<5mA Gear)
	0.3Ω～500Ω (40mA Gear)
	0.1Ω～100Ω （200mA Gear）
	0.06Ω～20Ω （1A Gear）
	0.03Ω～3.2Ω (5A Gear)
	0～1.6Ω （10A Gear）
	0～100KΩ （automatic）
Accuracy	0.2%±2 numeric
working temperature	-10～40℃
Working humidity	<80%RH，No condensation
