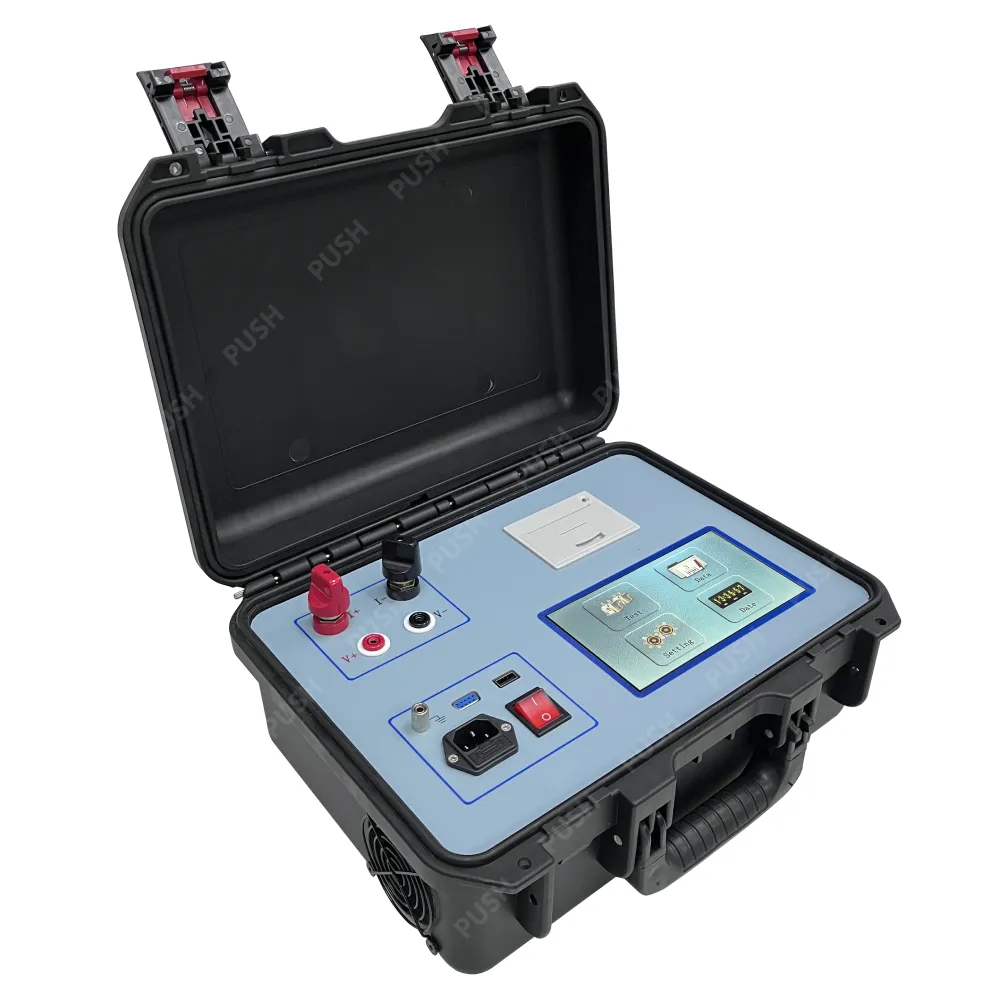

Product Selling Point Introduction
- 1. The machine can be controlled by the phone using special software so that the test result can save the phone and queried.
2. The machine has multiple Protection function such as overhot of power protection disconnection protection and outage protection during the test.
3. Intelligent power management technology, save energy to avoid the machine become hot.
4. High output voltage and wide measurement range.
5. Quickly test, The test current is from high accurancy constant current,which don’t need to regulate manually.
6. The four-terminal wiring method is used to effectively eliminate the influence of the resistance of the test line on the test results.
7. 7 inch color tauch scrren, English version.
8. The instrument comes with a perpetual calendar clock and power-off storage, which can store 1000 sets of test data, which can be consulted at any time.
9. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage.
10. Micro printer to print the result.
Product Parameter
|
Measuring current |
50A, 100A, 150A, 200A |
|
Measuring range |
0～100mΩ（50A） 0～50mΩ（100A） |
|
|
0～20mΩ（150A） 0～20mΩ（200A） |
|
Resolution |
mini 0.1µΩ |
|
Accuracy |
±（0.5%±2word） |
|
Power |
1000W |
|
Working method |
continuous measurement |
|
Power supply |
AC127V±10% 60HZ |
|
Temperature |
0～40℃ |
|
Relative humidity |
≦90% no dew |
|
Volume |
360*290*170（mm） |
|
Weight |
Instrument 6.5kg wire box 9.0kg |
