The AC-DC voltage divider is connected to the high-voltage measurement terminal through the instrument signal line, which can realize long-distance and clear reading, and is safe and convenient to use. This series of AC and DC voltage dividers has high input impedance and good linearity. It adopts special shielding technology to reduce the influence of high voltage on the displayed value, so as to achieve high stability and high linearity.

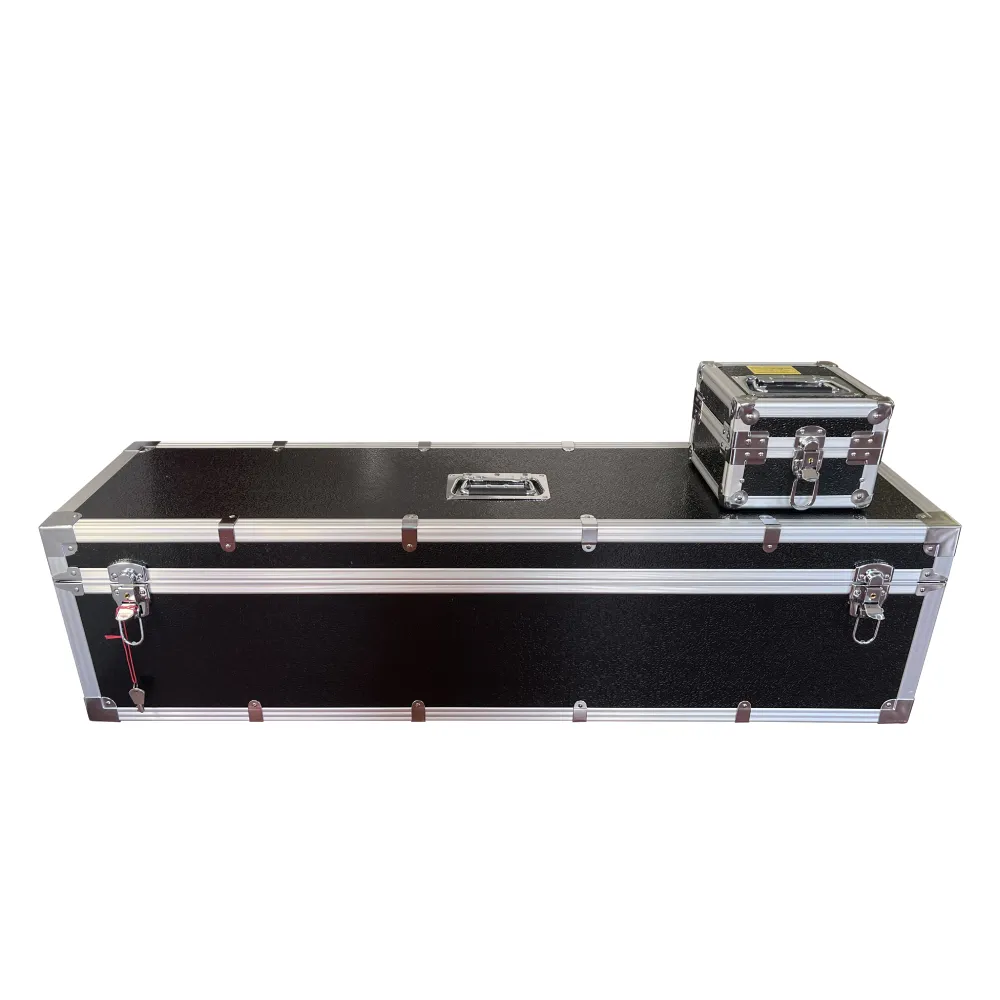

Imported filling materials are used to make the structure smaller, lighter in weight, higher in reliability and lower in internal partial discharge. Small in size, light in weight and easy to carry, it brings great convenience to the inspection work on site.
|
Model |
Voltage class AC/DC |
Precision |
Capacitance (pF) Impedance (MΩ) |
Signal line length |
|
RC50kV |
50kV |
AC:1.0%rdg±0.1DC:0.5% rdg±0.1 Other precision can be customized |
450pF,600M |
3m |
|
RC100kV |
100kV |
200pF,1200M |
4 m |
|
|
RC150kV |
150kV |
150pF,1800M |
4 m |
|
|
RC200kV |
200kV |
100pF,2400M |
4 m |
|
|
RC250kV |
250kV |
100pF,3000M |
5 m |
|
|
RC300kV |
300kV |
100pF,3600M |
6 m |
|
Product standard |
DL/T846.1-2004 |
|
|
AC measurement method |
true RMS measurement, peak value (optional), average value (optional) |
|
|
Accuracy |
AC |
1.0%rdg±0.1 |
|
DC |
0.5%rdg±0.1 |
|
|
Insulation medium |
dry medium material |
|
|
Environmental conditions |
Temperature |
-10℃～40℃ |
|
Humidity |
≤70%RH |
|
|
Divider ratio |
N=1000：1 |
|
-
