Product Selling Point Introduction

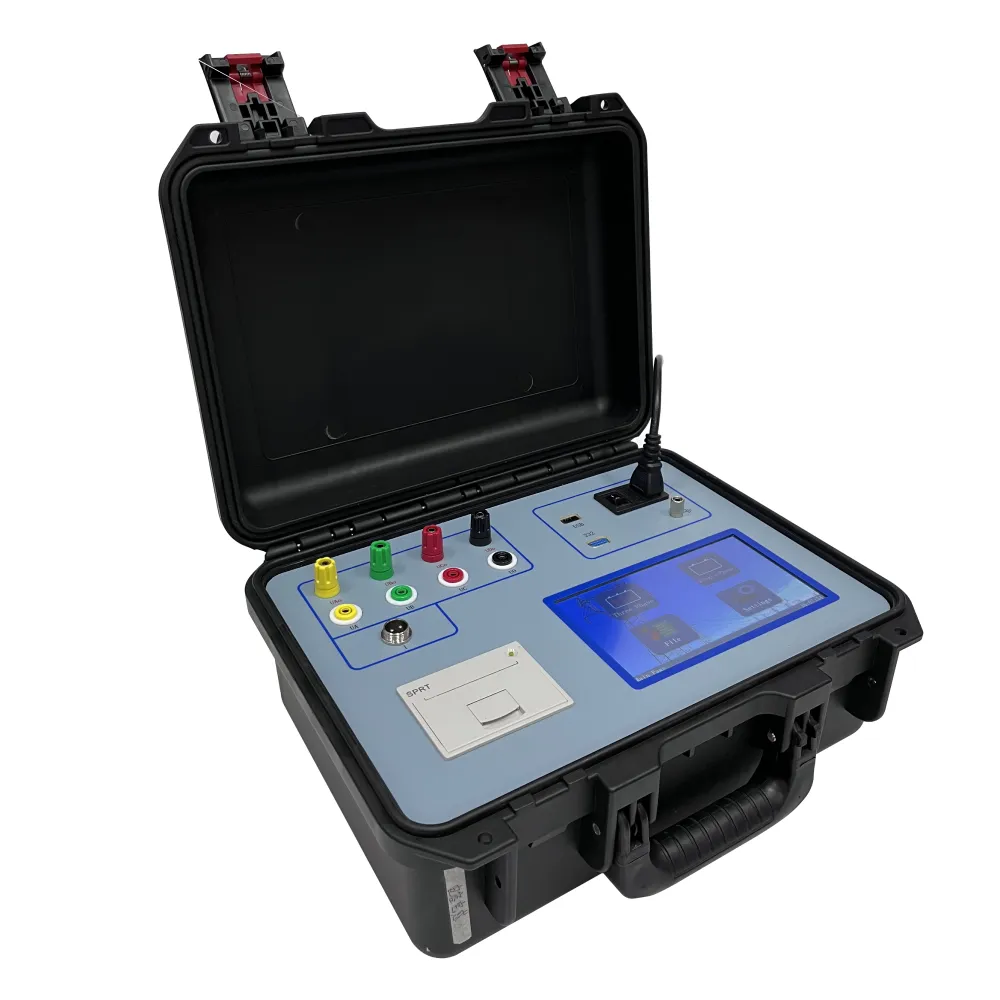

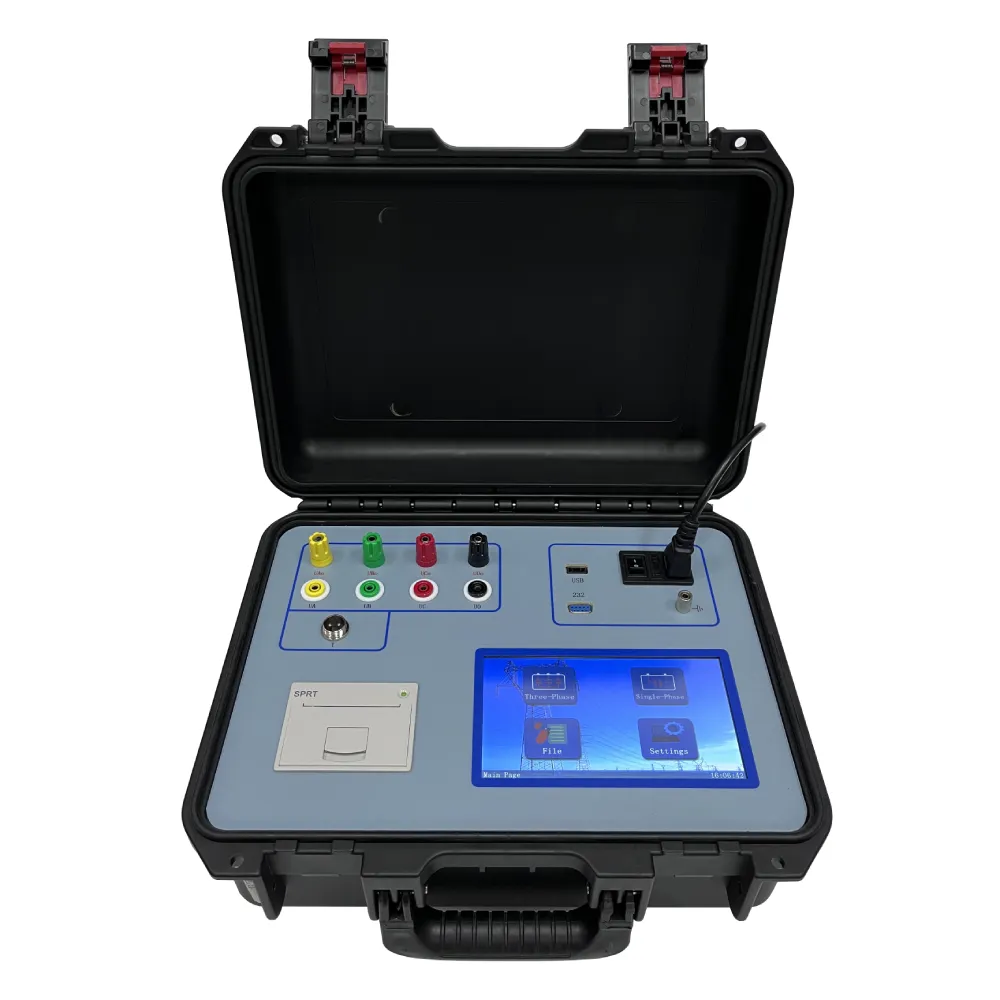

- 1. This instrument can measure the single capacitance of a group of parallel capacitors without removing the wires (both single-phase capacitance and three-phase capacitance can be measured). kind of use.
2. During the measurement, the instrument can display the measured capacitance value or inductance value, and can also display the measured voltage, current, power, frequency, impedance, phase angle and other data;
3. The instrument adopts a 7.0-inch 1024×600 high-definition screen, touch operation, clear observation during the day and night, Chinese menu prompts, easy to operate.
4. The instrument has built-in large-capacity non-volatile memory: it can store 200 sets of measurement data. The instrument is equipped with a U-disk interface, which can store any group of measurement data (limited by the capacity of the U-disk).
5. The instrument has built-in high-precision real-time clock function: date and time calibration can be performed.
6. The instrument comes with a high-speed micro thermal printer: it can print measurement and historical data.
Product Parameter
|
Test voltage |
AC 100V ±10%, 50Hz |
|
|
AC 40V±10%, 50Hz |
||
|
AC 10V±10%, 50Hz |
||
|
AC 1V±10%, 50Hz |
||
|
Measuring range and accuracy |
Measurable capacitance range |
0.1uF～6000uF ±(reading 1%+0.01uF) |
|
Measurable inductance range |
50uH ～20H ±(reading 3%+0.05uH) |
|
|
Measurable current range |
5mA ~ 2A ±(3% of reading + 0.05mA) |
|
|
Measurable resistance range |
20mΩ～20kΩ ±(reading 3%+0.1mΩ) |
|
|
Dimensions |
365mm×285mm×170mm |
|
|
Ambient temperature |
-20℃～40℃ |
|
|
Ambient humidity |
≤85%RH |
|
|
Working power |
AC220V±10%, 50±1Hz |
|
