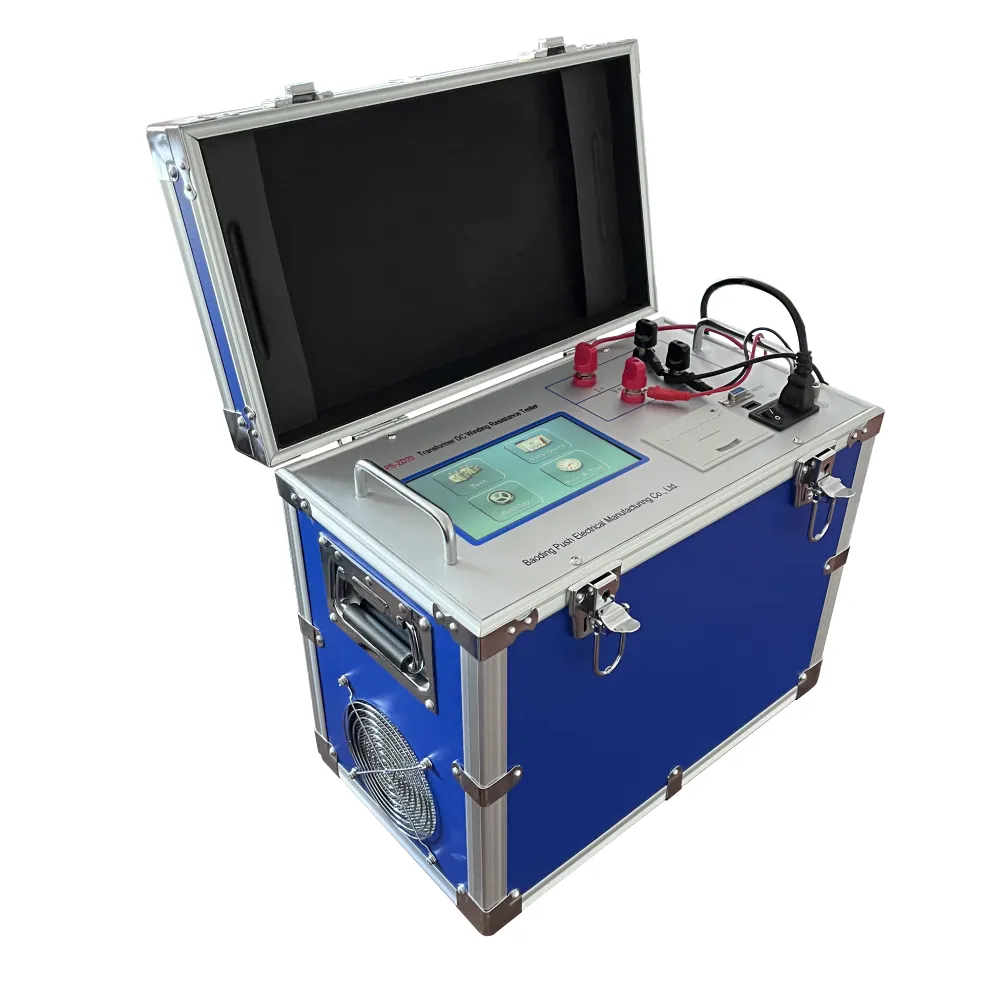

PS-ZD20 20A Transformer DC Winding Resistance Tester

Transformer DC resistance is a must-test item for semi-finished products, finished products factory test, installation, overhaul, change of tap changer, handover test and preventive test of power sector in transformer manufacturing. It can check the welding quality of the winding joint and whether the winding is short-circuited between turns. It can check whether the contact of each position of the voltage tap changer is good, whether the actual position of the tap changer is consistent with the indicated position, whether the lead wire is broken, and the multi-strand wires are wound in parallel. Whether there is a stock break, etc.
DOWN LOAD TO PDF
Details
Tags
Product Selling Point Introduction



  1. 1. Whole instrument controlled by high speed SCM, high automatic degree and simple operation.
    2. The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer.
    3. Has a complete circuit protection, reliable.
    4. Discharge alarm, discharge indicator clear, reduces misuse.
    5. Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat.
    6. Seven-inch high-brightness touch colorful LCD display
    7. With calendar clock and power storage, can store 1000 groups data, can be check at any time.
    8. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage.
    9. Self-contained micro printer, which can print measurement results.
    10. Download the special APP, the instrument can connect to your mobile by bluetooth function to control the instrument throughout the special software, and the test data is stored and uploaded for easy reference.
  2.
Product Parameter



Item

Technical Specification

Remarks

Output Current

<20mA、1A、2.5A、5A、10A、20A



Test Range

100μΩ~1Ω (20A)
500μΩ~2Ω (10A)
1mΩ~4Ω (5A)
2mΩ~8Ω (2.5A)
5mΩ~20Ω (1A)

Accuracy:±(0.2%+2readings)

10Ω-20KΩ (<20mA)

Accuracy:±(0.5%+2readings)

Resolution

0.1μΩ



Data Storage

1000 groups



Working Condition

Temperature:0℃~40℃
Ambient humidity:≤90%RH,(non condensed)



Power Supply

AC 220V±10V,50Hz±1 Hz

Fuse 5A

Max Consumption

500W



Dimension

Host:405×230×355(mm)
Accessories:360×260×180(mm)



Weight

Host:15KG Accessories:5.5KG



Test Line

Standard 13m

Length can be customized
