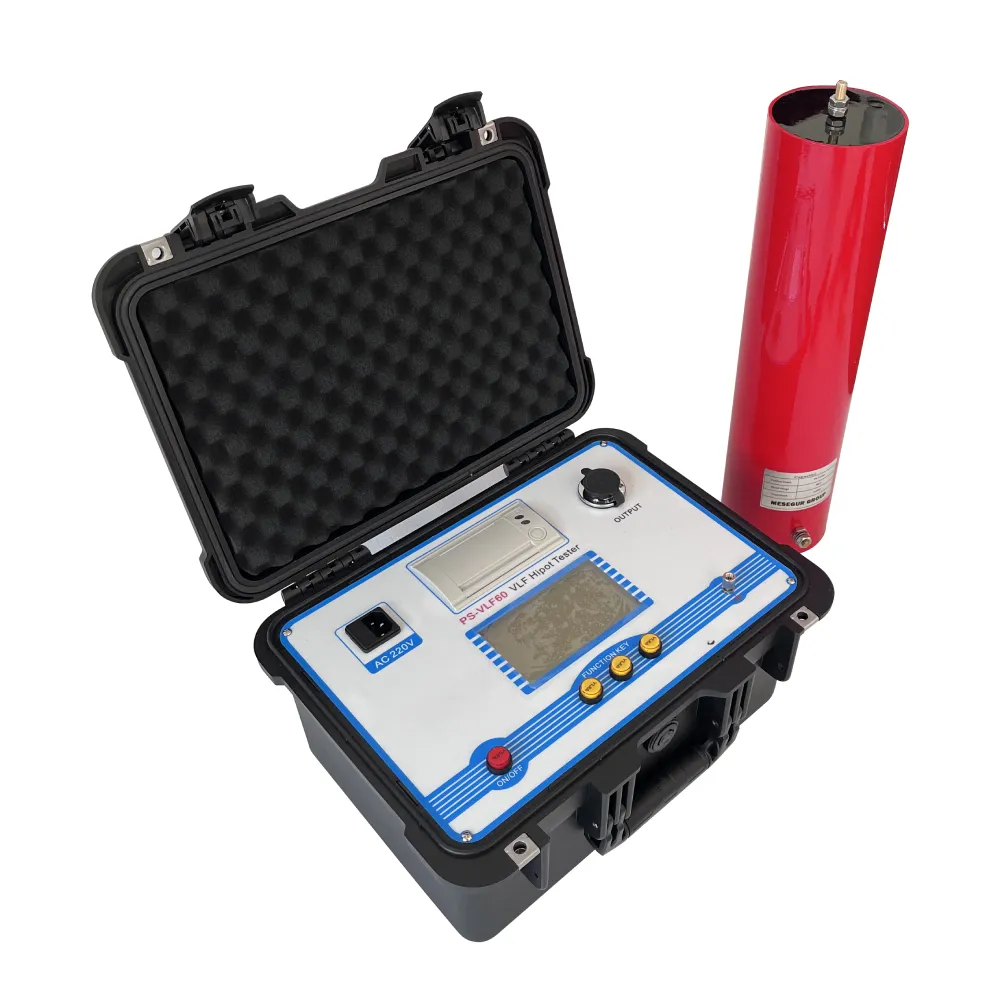

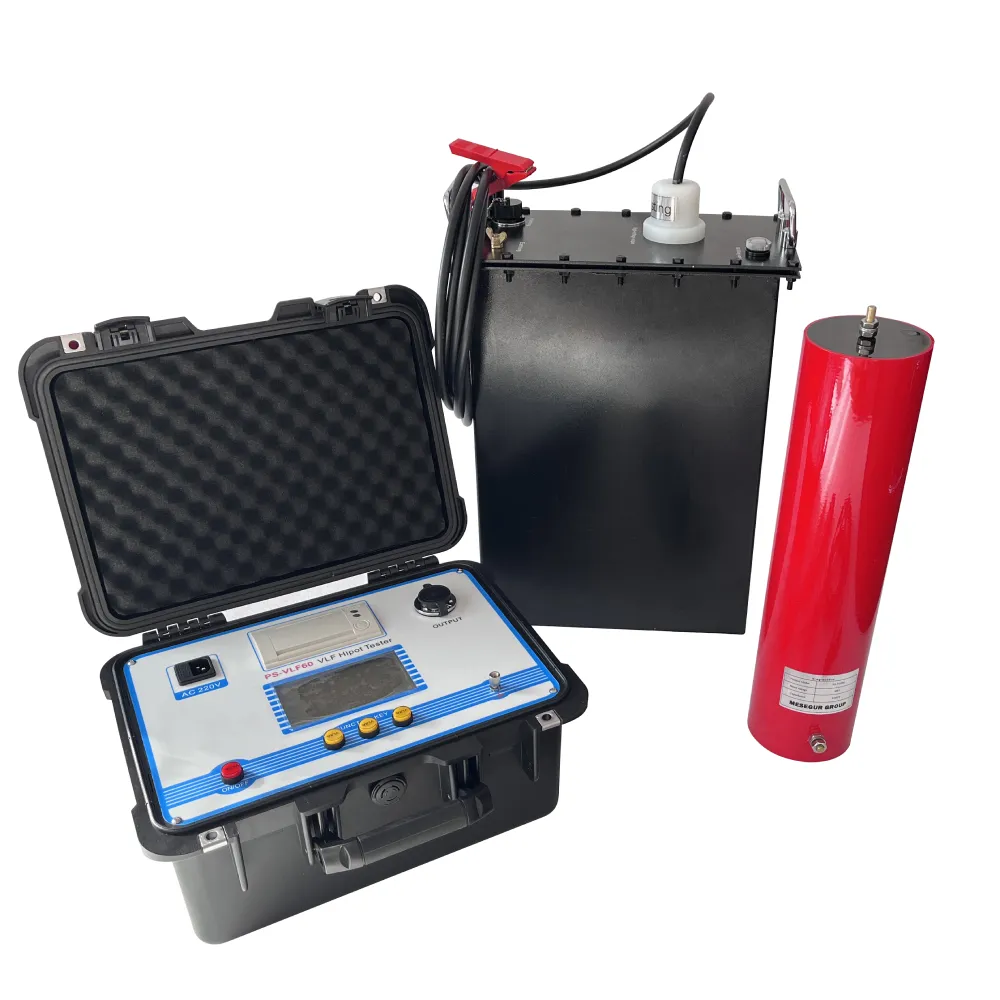

Push 80kv 60kv 30kv High Voltage Ac Hv Vlf Hipot Tester Vlf Cable Testing Equipment

The product combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, stepdown, measurement and protection as well as the manual intervention in the process of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output wave form. The printer outputs test reports.

CONTACT NOW DOWN LOAD TO PDF

Details

Tags

Product Selling Point Introduction

1, Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
2, Overvoltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
3, Overcurrent protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
4,A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.

Product Parameter

Model no	Rated Voltage/current	Load Carrying Capacity	Power FuseTube	Product Structure and Weight
VLF-30	30kV/20mA （Peak）	0.1Hz,≤1.1µF	5A	Controller：4㎏Booster： 25㎏
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
VLF-50	50kV/30mA （Peak）	0.1Hz,≤1.1µF	15A	Controller：4㎏Booster： 50㎏
		0.05Hz,≤2.2µF
		0.02Hz,≤5.5µF
VLF-80	80kV/30mA （Peak）	0.1Hz,≤0.5µF	20A	Controller：4㎏Booster ： 55㎏
		0.05Hz,≤1µF
		0.02Hz,≤2.5µF
